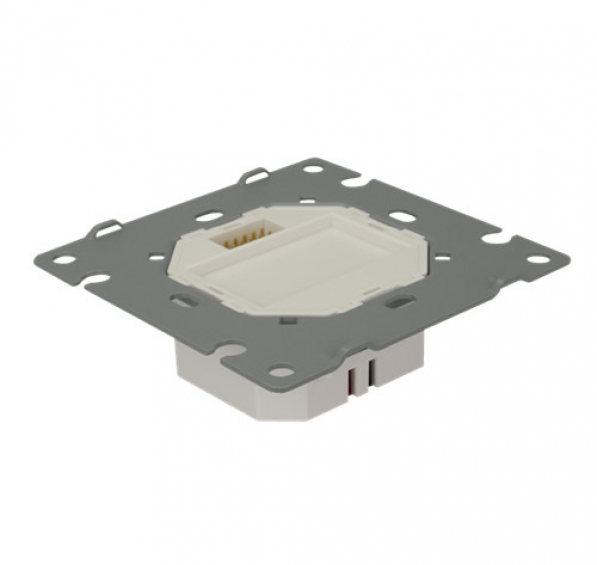

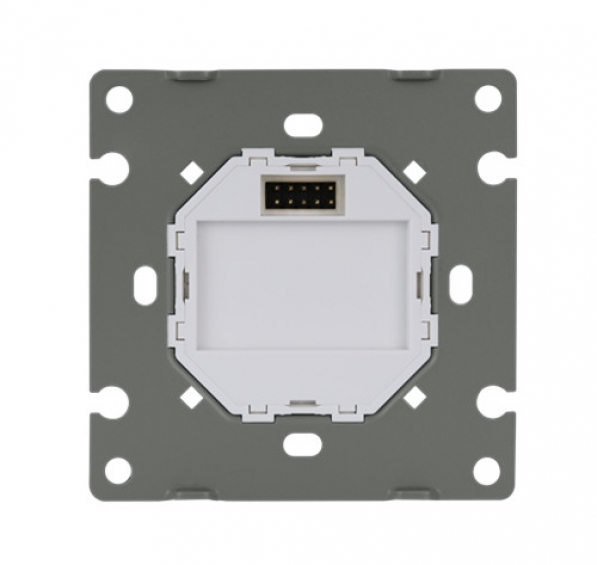

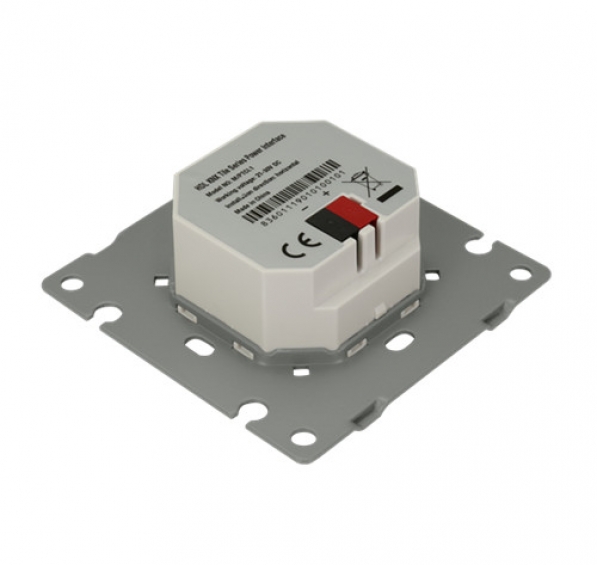

KNX Tile Series Power Interface
0.00 Lei
Stoc:
KNX Tile Series Power Interface works in conjunction with KNX Tile Series panels and provides working voltage and communication signals to the panel. ■ Provides working voltage to panel. ■ Provides communication signals to panel. Basic Parameters Working voltage 21~30V DC Communication KNX Cable diameter of KNX terminal 0.6-0.8mm External Environment Working temperature -5℃~45℃ Working relative humidity ≤90% Storage temperature -20℃~60℃ Storage relative humidity ≤93% Specifications Dimensions 81.4×81.4×27 (mm) Net weight 69g Housing material Flame-retardant nylon, metal Installation Wall box (See Figure 5) Protection rating (Compliant with EN 60529) IP20
- Categorii: Echipamente Smart KNX
- Cod: M/PTCI.1
