KNX 4 inches touch screen

KNX

KNX 4 inches touch screen

0.00 Lei

Stoc:

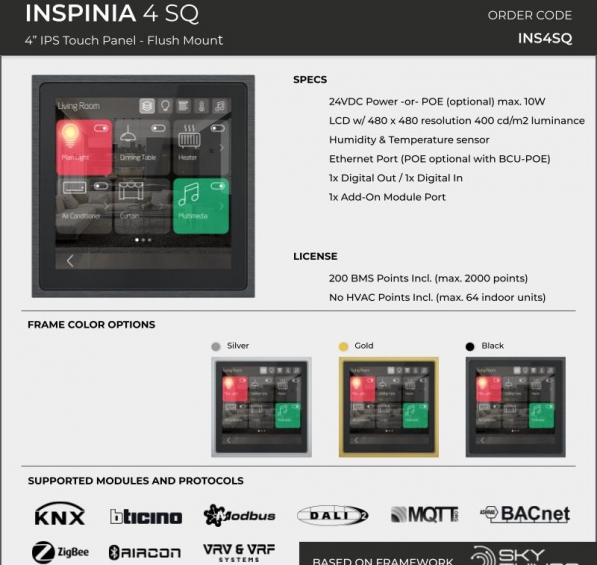

Hardware / Software: Display: Power Supply: Standard Interfaces: Built-in Sensors: ARM A7 Single-Core 1.2 GHz / 128MB DDR3 Ram / 2GB SD Flash OS Linux 3.4 with Inspinia Application up to 200 UI objects and 1000 BMS points Initial license: 200 BMS points / No HVAC (VRV/VRF) point IPS 4″ 480 x 480 resolution 400 cd/m2 luminance 5 Point capacitive touchscreen 24VDC In POE IEEE 802.3af Power consumption max. 5W 1x LAN (POE) RJ45 10/100Mbps interface 1x Add-On Port (Optional Interface Port) 1x Digital Out (5VDC) 1x Digital In Humidity sensor range 0% up to 100% RH Temperature sensor range -40°C up to +125°C Optional Interfaces (Ref.): KNX TP (A-KNX) Bticino (SCS) TP(A-SCS) iNELS Bus TP (A-iBUS) Galvanic isolated RS485 Modbus (A-GRS4) VRF mainline communication (A-VXX) Zigbee 3.0 (A-ZGB) Working Temperature & Humidity: -10°C – +60°C 5% – 90% at 25°C
